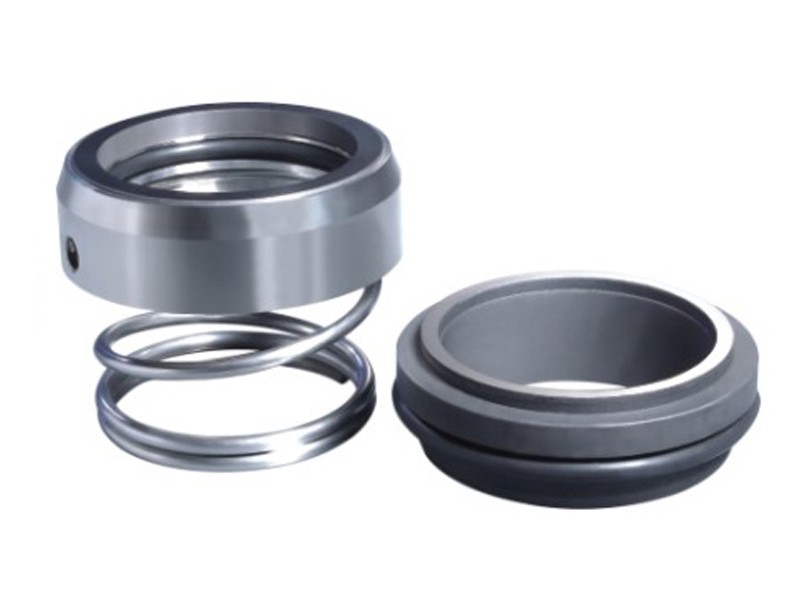

ZY Z1
Operating conditions
Tcmperature: -20~1509C
Pressure:≤1MPa
Speeds:≤13m/sec
Design Features
Single face, unbalanced structure and conical spring with one
side of spring is locked on the shaft, moving same direction.
Simple structure, good perfomance and reliable seal.
Suitable for many specifications and designswhich confomm to GB6556,1S03069 and DlN24960.
Tcmperature: -20~1509C
Pressure:≤1MPa
Speeds:≤13m/sec
Design Features
Single face, unbalanced structure and conical spring with one
side of spring is locked on the shaft, moving same direction.
Simple structure, good perfomance and reliable seal.
Suitable for many specifications and designswhich confomm to GB6556,1S03069 and DlN24960.
- Description
- Online Inquiry
- Related Products
Description

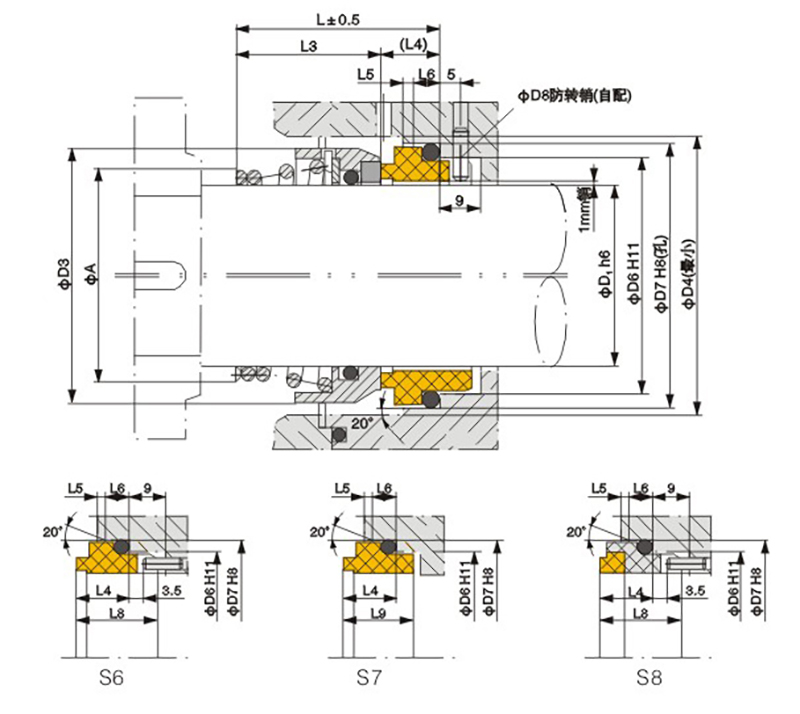

| Model | D1 | D3 | D4 | D6 | D7 | D8 | L | L3 | L4 | L5 | L6 | L8 | L9 | A |
| ZYZ1-16 | 16 | 30 | 32 | 23 | 27 | 3 | 37.0 | 27.0 | 10 | 1.5 | 4 | 17.5 | 11.5 | 20 |
| ZYZ1-18 | 18 | 32 | 34 | 27 | 33 | 3 | 37.5 | 27.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 22 |
| ZY Z1-20 | 20 | 34 | 36 | 29 | 35 | 3 | 37.5 | 27.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 25 |
| ZYZ1-22 | 22 | 36 | 38 | 31 | 37 | 3 | 37.5 | 27.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 27 |
| ZYZ1-24 | 24 | 38 | 40 | 33 | 39 | 3 | 40.0 | 30.0 | 10 | 2.0 | 5 | 17.5 | 12.0 | 29 |
| ZYZ1-25 | 25 | 39 | 41 | 34 | 40 | 3 | 40.0 | 30.0 | 10 | 2.0 | 5 | 17.5 | 12.0 | 30 |
| ZYZ1-28 | 28 | 42 | 44 | 37 | 43 | 3 | 42.5 | 32.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 33 |
| ZY Z1-30 | 30 | 44 | 46 | 39 | 45 | 3 | 42.5 | 32.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 36 |
| ZYZ1-32 | 32 | 46 | 48 | 42 | 48 | 3 | 42.5 | 32.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 38 |
| ZYZ1-33 | 33 | 47 | 49 | 42 | 48 | 3 | 42.5 | 32.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 40 |
| ZYZ1-35 | 35 | 49 | 51 | 44 | 50 | 3 | 42.5 | 32.5 | 10 | 2.0 | 5 | 17.5 | 12.0 | 42 |
| ZYZ1-38 | 38 | 54 | 58 | 49 | 56 | 4 | 45.0 | 32.0 | 13 | 2.0 | 6 | 20.0 | 14.5 | 45 |
| ZY Z1-40 | 40 | 56 | 60 | 51 | 58 | 4 | 45.0 | 32.0 | 13 | 2.0 | 6 | 20.0 | 14.5 | 47 |
| ZYZ1-43 | 43 | 59 | 63 | 54 | 61 | 4 | 45.0 | 32.0 | 13 | 2.0 | 6 | 20.0 | 14.5 | 51 |
| ZYZ1-45 | 45 | 61 | 65 | 56 | 63 | 4 | 45.0 | 32.0 | 13 | 2.0 | 6 | 20.0 | 14.5 | 53 |
| ZYZ1-48 | 48 | 66 | 68 | 59 | 66 | 4 | 45.0 | 32.0 | 13 | 2.0 | 6 | 20.0 | 14.5 | 56 |
| ZYZ1-50 | 50 | 68 | 70 | 62 | 70 | 4 | 47.5 | 33.5 | 14 | 2.5 | 6 | 21.0 | 15.5 | 59 |
| ZY Z1-55 | 55 | 71 | 75 | 67 | 75 | 4 | 47.5 | 33.5 | 14 | 2.5 | 6 | 21.0 | 15.5 | 64 |
| ZYZ1-60 | 60 | 80 | 85 | 72 | 80 | 4 | 52.5 | 38.5 | 14 | 2.5 | 6 | 21.0 | 15.5 | 70 |
| ZYZ1-65 | 65 | 85 | 90 | 77 | 85 | 4 | 52.5 | 38.5 | 14 | 2.5 | 6 | 21.0 | 15.5 | 76 |
| ZYZ1-70 | 70 | 90 | 95 | 83 | 92 | 4 | 60.0 | 44.0 | 16 | 2.5 | 7 | 22.0 | 16.5 | 81 |
| ZYZ1-75 | 75 | 93 | 104 | 88 | 97 | 4 | 60.0 | 44.0 | 16 | 2.5 | 7 | 22.0 | 16.5 | 86 |
| ZYZ1-80 | 80 | 100 | 109 | 95 | 105 | 4 | 60.0 | 42.0 | 18 | 3.0 | 7 | 24.5 | 20.0 | 92 |
| ZYZ1-85 | 85 | 105 | 114 | 100 | 110 | 4 | 60.0 | 42.0 | 18 | 3.0 | 7 | 24.5 | 20.0 | 98 |
| ZYZ1-90 | 90 | 110 | 119 | 105 | 115 | 4 | 65.0 | 47.0 | 18 | 3.0 | 7 | 24.5 | 20.0 | 103 |
| ZY Z1-95 | 95 | 115 | 124 | 110 | 120 | 4 | 65.0 | 47.0 | 18 | 3.0 | 7 | 24.5 | 20.0 | 108 |
| ZY Z1-100 | 100 | 120 | 129 | 115 | 125 | 4 | 65.0 | 47.0 | 18 | 3.0 | 7 | 24.5 | 20.0 | 114 |
