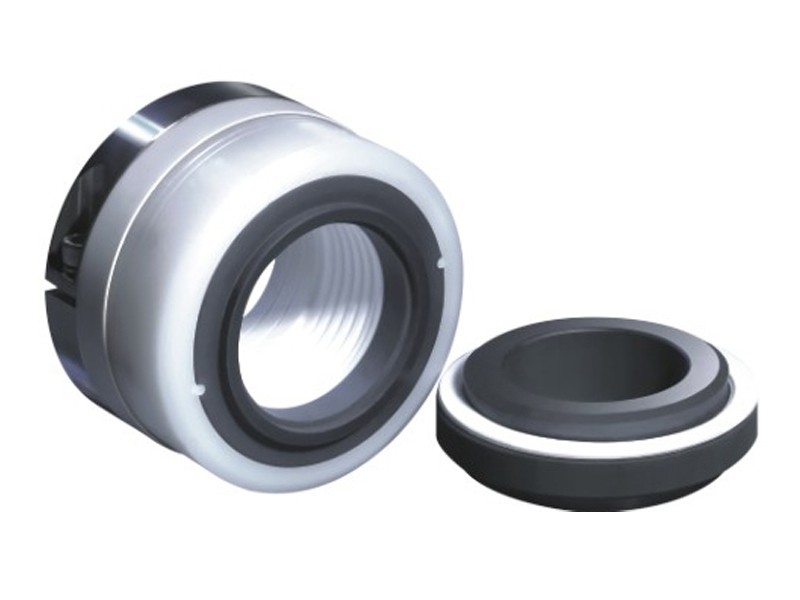

ZY WB2
Operatinglimits
Pressure:0-0.8MPa
Temperature:0-80°C
Speeds:≤14m/sec
Materials
Rotary Ring: Polytetrafluoroethylene stationary ring
Stationary Ring: Silicon carbide/Ceramics
Auxiliary Seal: Polytetrafluoroethylene
Spring and Other Parts: Stainless steel
Pressure:0-0.8MPa
Temperature:0-80°C
Speeds:≤14m/sec
Materials
Rotary Ring: Polytetrafluoroethylene stationary ring
Stationary Ring: Silicon carbide/Ceramics
Auxiliary Seal: Polytetrafluoroethylene
Spring and Other Parts: Stainless steel
- Description
- Online Inquiry
- Related Products
Description

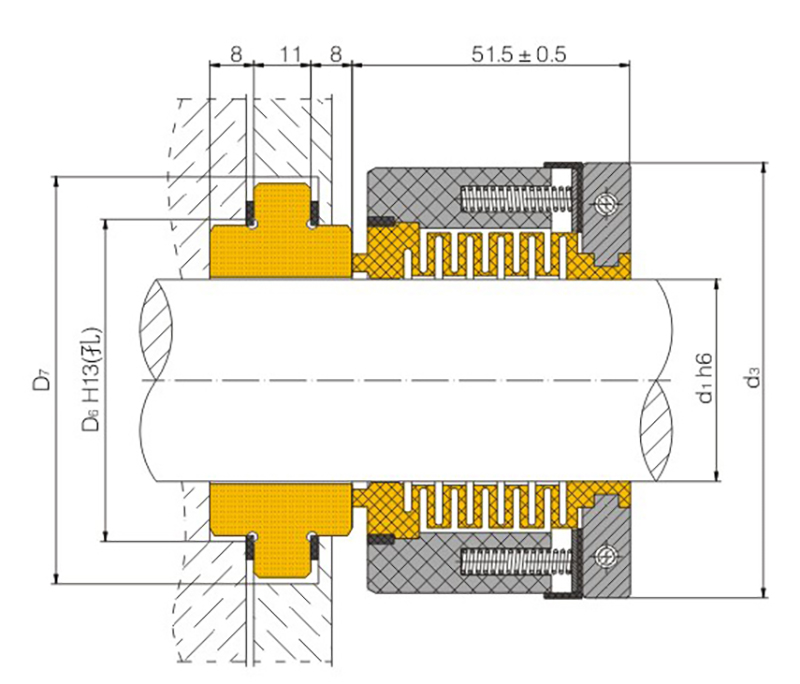

| Model | di | ds | Ds | D7 |
| ZY WB2-25 | 25 | 69 | 47 | 60 |
| ZY WB2-30 | 30 | 74 | 54 | 68 |
| ZY WB2-35 | 35 | 79 | 58 | 71 |
| ZY WB2-40 | 40 | 84 | 63 | 77 |
| ZY WB2-45 | 45 | 89 | 70 | 84 |
| ZY WB2-50 | 50 | 96 | 73 | 87 |
| ZY WB2-55 | 55 | 101 | 79 | 96 |
| ZY WB2-60 | 60 | 106 | 86 | 102 |
