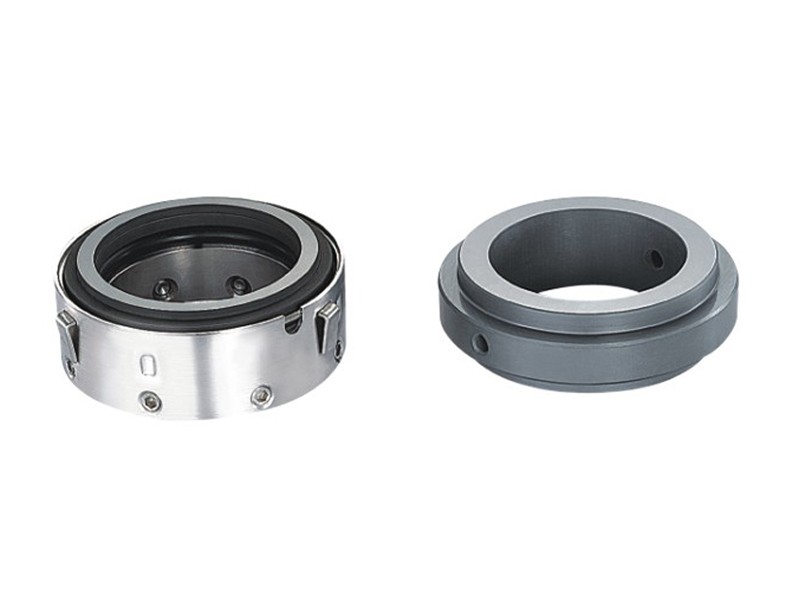

ZY ST
Operating Limits
Pressure: ≤1.2MPa
Speed:≤20m/s
Temperature: -30°C~+200°C
Materials
Stationary Ring(SIC/TC)
Rotary Ring(Carbon/SIC/TC)
Secondary Seal(NBR/VITON/Asbestos)
Spring & Other Parts( SUS304/SUS316 )
Pressure: ≤1.2MPa
Speed:≤20m/s
Temperature: -30°C~+200°C
Materials
Stationary Ring(SIC/TC)
Rotary Ring(Carbon/SIC/TC)
Secondary Seal(NBR/VITON/Asbestos)
Spring & Other Parts( SUS304/SUS316 )
- Description
- Online Inquiry
- Related Products
Description

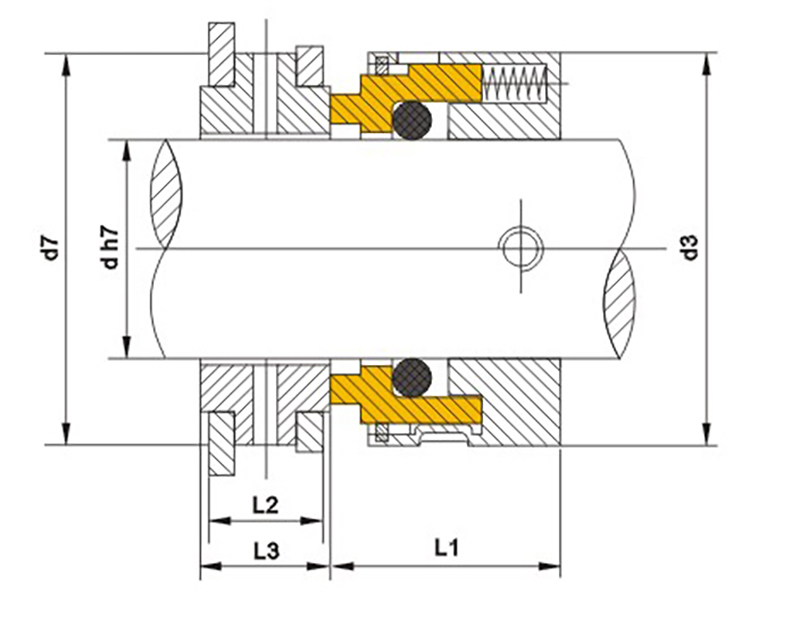

| Seal size d(inch) |
d | d3 | d7 | L1 | L2 | L3 |
| 1 1/8" | 28.575 | 47.6 | 59.4 | 25.6 | 15.9 | 25.3 |
| 1 5/8" | 41.275 | 62.0 | 71.8 | 29.5 | 15.9 | 25.3 |
| 2 1/8" | 53.975 | 79.4 | 84.6 | 29.3 | 15.9 | 25.3 |
| 2 5/8" | 66.675 | 88.9 | 111 | 41.3 | 15.9 | 25.3 |
