ZY FH
Temperature:-30~200℃
Pressure:≤0.6MPa
Speeds:≤10m/sec
Materials
Retainer (Brass)
Drive Ring (Brass)
Spring (65Mn/SUS304/SUS316)
Spring Holder (Brass)
Bellows (NBR/EPDM/VITON)
Stationary Ring (Plastic Carbon/Carbon/SlC)
Rotary Ring (Ceramic/SIC/TC)
Cup Gasket (NBR/EPDM/VITON)
- Description
- Online Inquiry
- Related Products

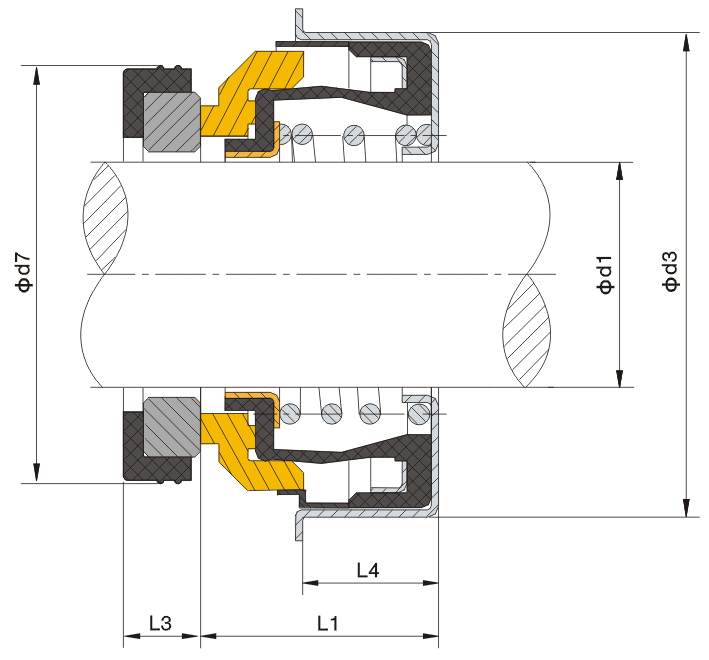

| MODEL | d1 | d3 | d7 | L1 | L3 | L4 |

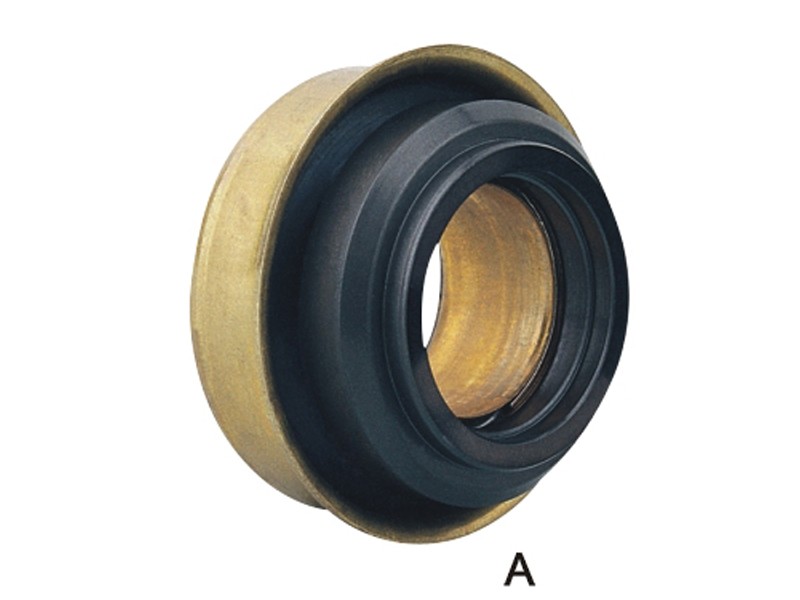

| ZYFH-20A | 20.0 | 40.0 | 33/33.5 | 17.5 | 6.5/5.5 | 11.0 |

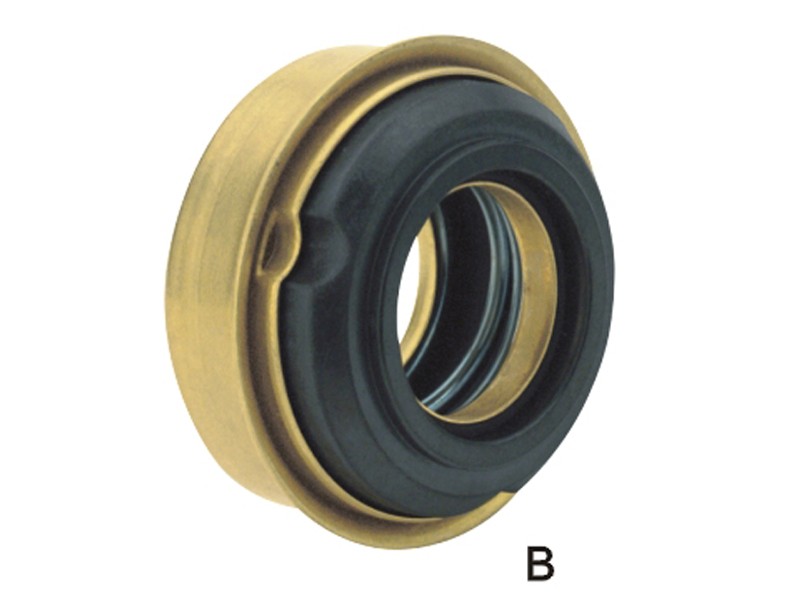

| ZYFH-20B | 20.0 | 40.0 | 33/33.5 | 17.5 | 6.5/5.5 | 11.0 |
ZY F
Operating Limits
Temperature:-30~200℃
Pressure:≤0.6MPa
Speeds:<15m/sec
Materials
Rotating Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Secondary Seal (NBR/ERDM/HNBR)
Spring & Other Parts (SUS304/SUS316)
ZY FB
Operating Limits
Temperature:- 30~-200℃
Pressure:≤0.6MPa
Speeds:≤15m/sec
Materials
Rotating Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Secondary Seal (NBR/EPDM/HNBR)
Spring & Other Parts (SUS304/SUS316)
ZY FBA
Operating Limits
Temperature:-30~120℃
Pressure: ≤0.4MPa
Speeds:≤7500Revolutions/minutes
Materials
Axial Pipe (SUS304/SUS316)
Spring (Sus304/SUs316)
Spring Seat (SUS304/SUS316)
Retainer (SUS304/SUS316)
Drive Ring (SUS304/SUS316)
Bellows (NBR/EPDMITON)
Stationary Ring (Carbon/SIC/TC)
Rotary Ring (Ceraminc/SIC/TC)
Impeller (industrial Plastic)
ZY FBM
Operating Limits
Temperature:- 30-200℃
Pressure:≤0.6MPa
Speeds:≤12m/sec
Materials
Axial Pipe (SUS304/SUS316)
Stationary Seat (SUS304/SUS316)
Bellows (NBR/EPDM/VITON)
Spring (65Mn/SUS304/SUS316)
Rotary Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Cup Gasket (NBR/EPDM/VITON)
