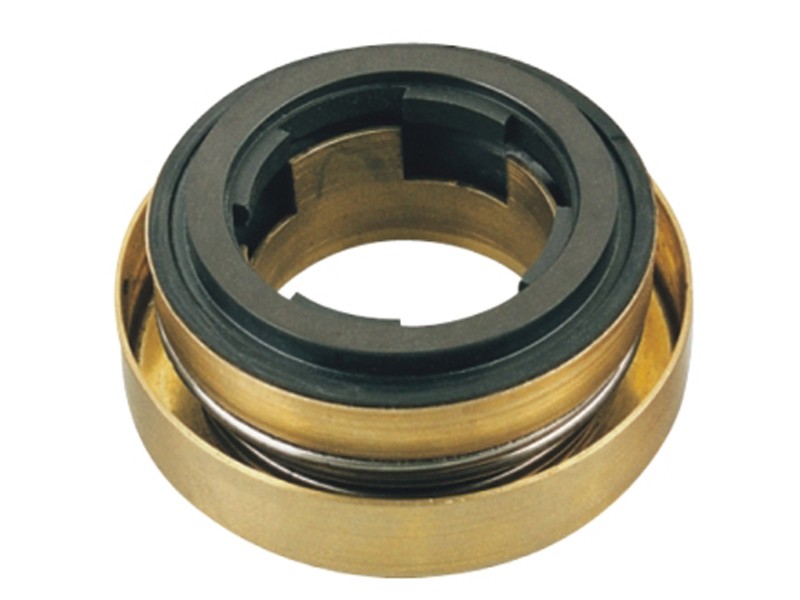

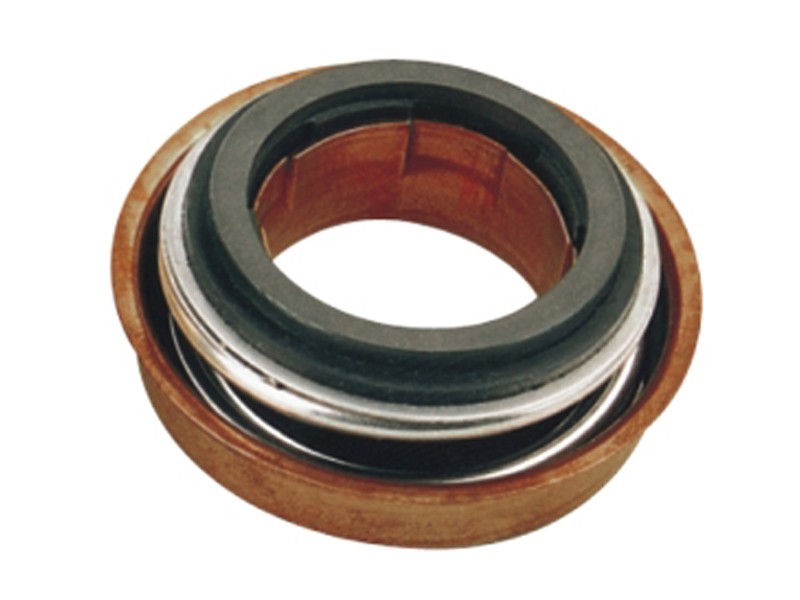

ZY FG
Temperature:-30~200℃
Pressure:≤0.6MPa
Speeds:≤10m/sec
Materials
Spring (SUS304/SUS316)
Stationary Seat (SUS304/SUS316/Brass)
Bellows (NBR/EPDM/VITON)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Rotary Ring (Ceramic/SIC/TC)
Cup Gasket (NBR/EPDM/VITON)
- Description
- Online Inquiry
- Related Products

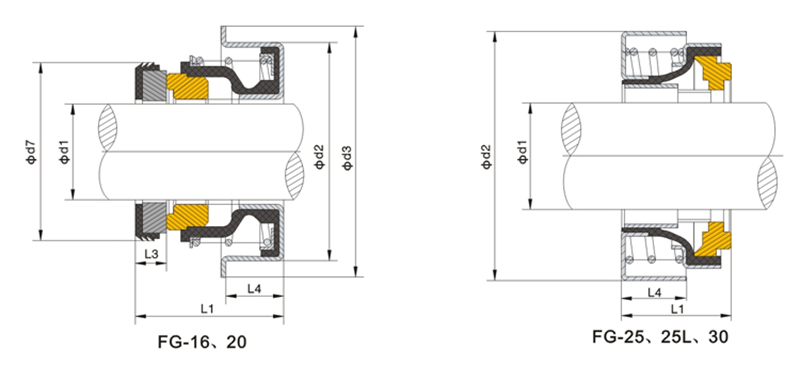

| MODEL | d1 | d2 | d3 | d7 | L1 | L3 | L4 |
| ZY FG-15 | 15 | 36.45 | 40 | 28.4 | 20 | 5 | 8.5 |
| ZY FG-16 | 16 | 36.45 | 42 | 29.5 | 22.8 | 5 | 10 |
| ZY FG-16A | 16 | 36.45 | 40 | 29.5 | 22.5 | 5 | 8.5 |
| ZY FG-20 | 20 | 40 | 44 | 35 | 20.5 | 5 | 8.6 |
| ZY FG-25 | 25 | 47 | - | - | 20.3 | - | 15 |
| ZY FG-25L | 25 | 52 | 22.8 | 12 | |||
| ZY FG-30 | 30 | 52 | - | - | 22 | - | 16 |
ZY F
Operating Limits
Temperature:-30~200℃
Pressure:≤0.6MPa
Speeds:<15m/sec
Materials
Rotating Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Secondary Seal (NBR/ERDM/HNBR)
Spring & Other Parts (SUS304/SUS316)
ZY FB
Operating Limits
Temperature:- 30~-200℃
Pressure:≤0.6MPa
Speeds:≤15m/sec
Materials
Rotating Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Secondary Seal (NBR/EPDM/HNBR)
Spring & Other Parts (SUS304/SUS316)
ZY FBA
Operating Limits
Temperature:-30~120℃
Pressure: ≤0.4MPa
Speeds:≤7500Revolutions/minutes
Materials
Axial Pipe (SUS304/SUS316)
Spring (Sus304/SUs316)
Spring Seat (SUS304/SUS316)
Retainer (SUS304/SUS316)
Drive Ring (SUS304/SUS316)
Bellows (NBR/EPDMITON)
Stationary Ring (Carbon/SIC/TC)
Rotary Ring (Ceraminc/SIC/TC)
Impeller (industrial Plastic)
ZY FBM
Operating Limits
Temperature:- 30-200℃
Pressure:≤0.6MPa
Speeds:≤12m/sec
Materials
Axial Pipe (SUS304/SUS316)
Stationary Seat (SUS304/SUS316)
Bellows (NBR/EPDM/VITON)
Spring (65Mn/SUS304/SUS316)
Rotary Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Cup Gasket (NBR/EPDM/VITON)
