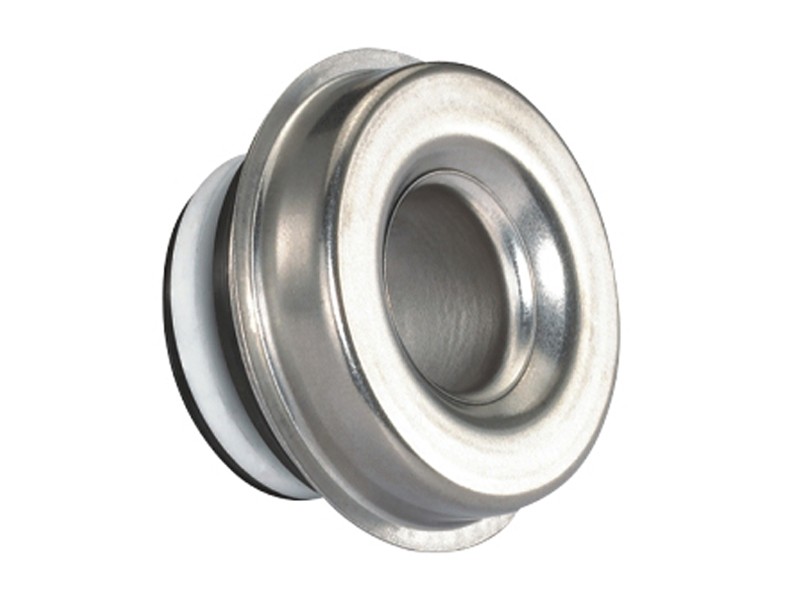

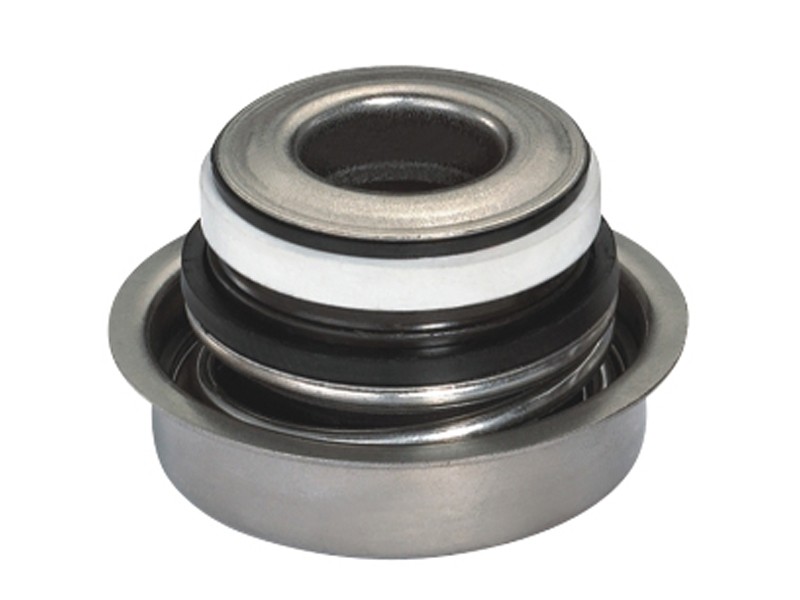

ZY FBW
Temperature:-30~200℃
Pressure:≤0.6MPa
Speeds:≤15m/sec
Materials
Rotating Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SlC)
Secondary Seal (NBR/EPDM/VITON)
Spring & Other Parts (SUS304/SUS316)
- Description
- Online Inquiry
- Related Products

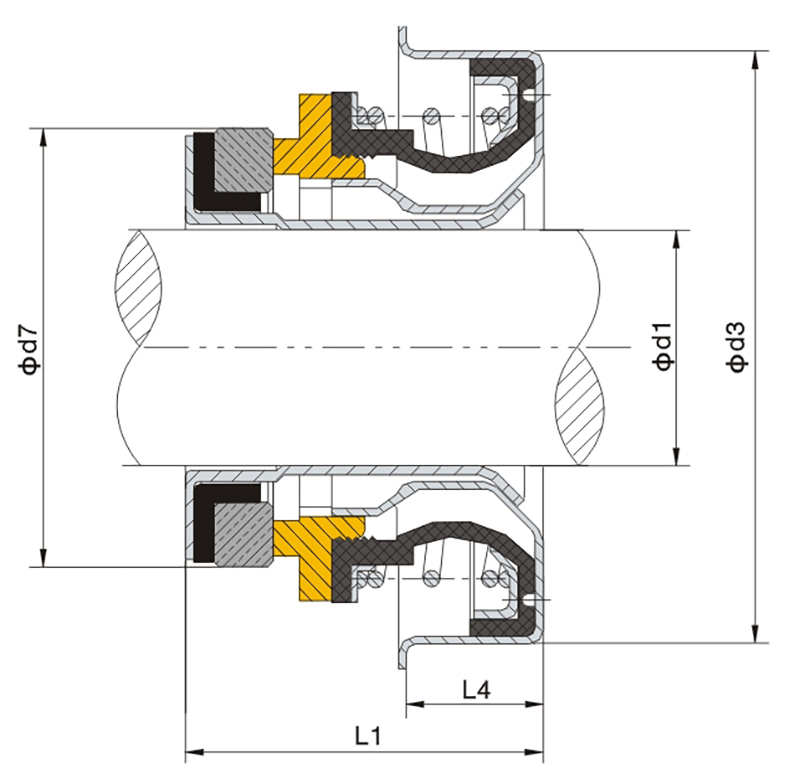

| MODEL | d1 | d3 | d7 | L1 | L4 |
| ZY FBW-12M | 12 | 30 | 24 | 20 | 7.5 |
| ZY FBW-15 | 15 | 36.5 | 29 | 19.9 | 8.7 |
| ZY FBW-16 | 16 | 36.5 | 29 | 19.9 | 8.7 |
| ZY FBW-16L | 16 | 38.1 | 29 | 19.8 | 8.5 |
| ZY FBW-20 | 20 | 40 | 34 | 20 | 9.5 |
| ZY FBW-1/2A | 12.7 | 30 | 28.5 | 14.7 | 7 |
| ZY FBW-16A | 16 | 36.5 | 32.5 | 19.4 | 8 |
ZY F
Operating Limits
Temperature:-30~200℃
Pressure:≤0.6MPa
Speeds:<15m/sec
Materials
Rotating Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Secondary Seal (NBR/ERDM/HNBR)
Spring & Other Parts (SUS304/SUS316)
ZY FB
Operating Limits
Temperature:- 30~-200℃
Pressure:≤0.6MPa
Speeds:≤15m/sec
Materials
Rotating Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Secondary Seal (NBR/EPDM/HNBR)
Spring & Other Parts (SUS304/SUS316)
ZY FBA
Operating Limits
Temperature:-30~120℃
Pressure: ≤0.4MPa
Speeds:≤7500Revolutions/minutes
Materials
Axial Pipe (SUS304/SUS316)
Spring (Sus304/SUs316)
Spring Seat (SUS304/SUS316)
Retainer (SUS304/SUS316)
Drive Ring (SUS304/SUS316)
Bellows (NBR/EPDMITON)
Stationary Ring (Carbon/SIC/TC)
Rotary Ring (Ceraminc/SIC/TC)
Impeller (industrial Plastic)
ZY FBM
Operating Limits
Temperature:- 30-200℃
Pressure:≤0.6MPa
Speeds:≤12m/sec
Materials
Axial Pipe (SUS304/SUS316)
Stationary Seat (SUS304/SUS316)
Bellows (NBR/EPDM/VITON)
Spring (65Mn/SUS304/SUS316)
Rotary Ring (Ceramic/SIC/TC)
Stationary Ring (Plastic Carbon/Carbon/SIC)
Cup Gasket (NBR/EPDM/VITON)
