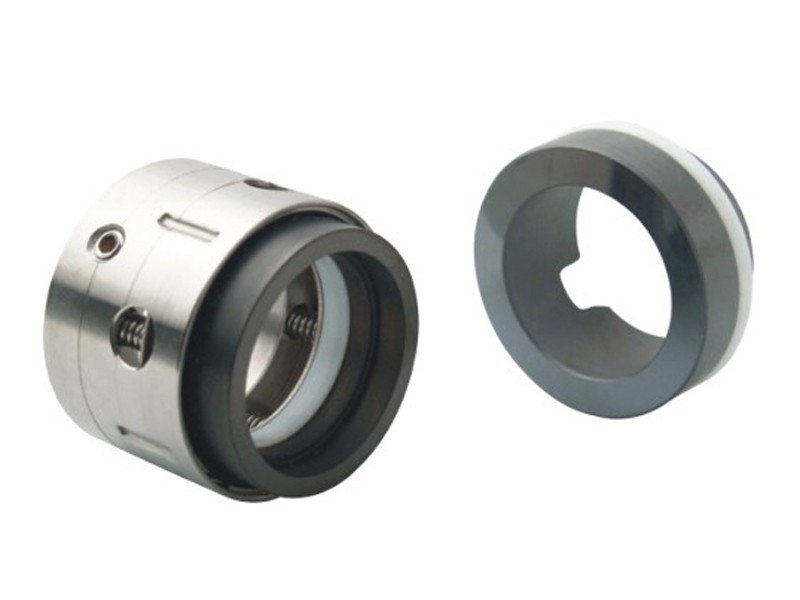

ZY 109
Operating Limits
Pressure: ≤2.4MPa
Speed:≤25m/s
Temperature:- 100°C~+ 260°C
Materials
Stationary Ring(Ceramic/SIC/TC)
Rotary Rina(Carbon/SlC/TC)
Secondary Seal(PTFE/Flexible Carbon/PTFE+VITON)
Spring & Other Parts( SUS316/AIl0y400(Monel))
Pressure: ≤2.4MPa
Speed:≤25m/s
Temperature:- 100°C~+ 260°C
Materials
Stationary Ring(Ceramic/SIC/TC)
Rotary Rina(Carbon/SlC/TC)
Secondary Seal(PTFE/Flexible Carbon/PTFE+VITON)
Spring & Other Parts( SUS316/AIl0y400(Monel))
- Description
- Online Inquiry
- Related Products
Description

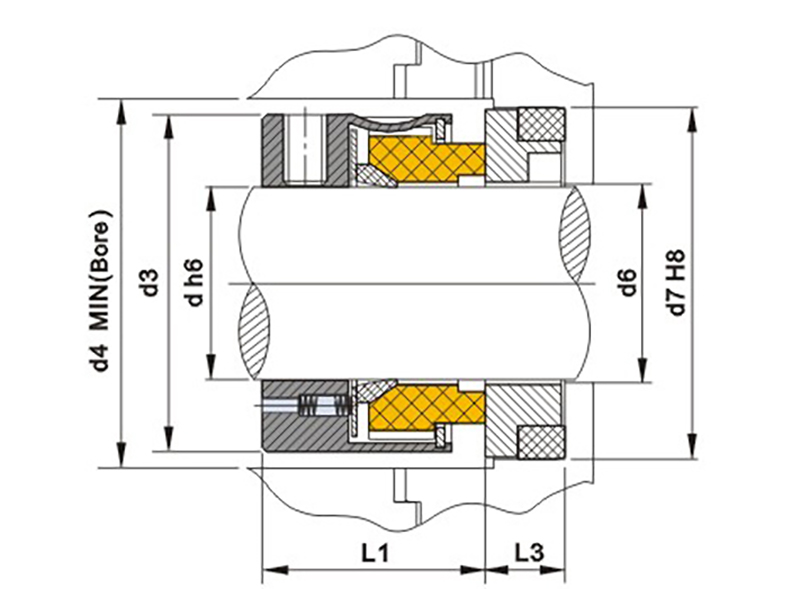

| Seal size d(inch) |
d3 | d4 | d6 | d7 | L1 | L3 |
| 0.500 | 26.7 | 29 | 13.4 | 25.40 | 20.6 | 7.95 |
| 0.625 | 30.7 | 34 | 16.6 | 31.75 | 19.0 | 10.30 |
| 0.750 | 34.0 | 37 | 19.7 | 34.93 | 22.2 | 10.30 |
| 0.875 | 37.2 | 40 | 22.9 | 38.10 | 23.8 | 10.30 |
| 1.000 | 40.3 | 43 | 26.1 | 41.28 | 25.4 | 11.10 |
| 1.125 | 43.5 | 46 | 29.36 | 44.45 | 27.0 | 11.10 |
| 1.250 | 48.3 | 51 | 32.4 | 47.63 | 27.0 | 11.10 |
| 1.375 | 51.5 | 54 | 35.6 | 50.80 | 28.6 | 11.10 |
| 1.500 | 54.6 | 58 | 38.8 | 53.98 | 28.6 | 11.10 |
| 1.625 | 61.0 | 64 | 42.4 | 60.33 | 35.0 | 12.70 |
| 1.750 | 64.2 | 67 | 45.5 | 63.50 | 35.0 | 12.70 |
| 1.875 | 67.3 | 70 | 48.7 | 66.68 | 35.0 | 12.70 |
| 2.000 | 70.5 | 73 | 51.9 | 69.85 | 35.0 | 12.70 |
| 2.125 | 76.9 | 80 | 55.0 | 76.20 | 43.0 | 14.30 |
| 2.250 | 80.0 | 83 | 58.2 | 79.38 | 43.0 | 14.30 |
| 2.375 | 83.2 | 86 | 61.4 | 82.55 | 43.0 | 14.30 |
| 2.500 | 86.4 | 89 | 64.6 | 85.73 | 43.0 | 14.60 |
| 2.625 | 89.6 | 92 | 67.7 | 85.73 | 43.0 | 15.90 |
| 2.750 | 92.7 | 96 | 70.9 | 88.90 | 43.0 | 15.90 |
| 2.875 | 95.9 | 99 | 74.1 | 85.25 | 43.0 | 15.90 |
| 3.000 | 97.5 | 100 | 77.3 | 98.43 | 43.0 | 15.90 |
| 3.125 | 100.7 | 104 | 80.5 | 101.60 | 43.0 | 19.80 |
| 3.250 | 105.4 | 108 | 83.6 | 104.78 | 43.0 | 19.80 |
| 3.375 | 108.6 | 111 | 86.8 | 107.95 | 43.0 | 19.80 |
| 3.500 | 111.8 | 115 | 90.0 | 111.13 | 43.0 | 19.80 |
| 3.625 | 115.0 | 118 | 93.1 | 114.30 | 43.0 | 19.80 |
| 3.750 | 118.1 | 121 | 96.3 | 117.48 | 43.0 | 19.80 |
| 3.875 | 121.3 | 124 | 99.5 | 120.65 | 43.0 | 19.80 |
| 4.000 | 124.5 | 127 | 102.7 | 123.83 | 43.0 | 19.80 |
| 4.125 | 127.7 | 131 | 106.3 | 130.18 | 43.0 | 19.80 |
| 4.250 | 130.8 | 134 | 109.5 | 133.35 | 43.0 | 19.80 |
| 4.375 | 134.0 | 137 | 112.7 | 136.53 | 43.0 | 19.80 |
| 4.500 | 137.2 | 140 | 115.9 | 139.70 | 43.0 | 19.80 |
| 4.625 | 149.9 | 153 | 119.0 | 142.88 | 51.0 | 19.80 |
| 4.750 | 153.1 | 156 | 122.2 | 146.05 | 51.0 | 19.80 |
| 4.875 | 156.2 | 159 | 125.4 | 149.23 | 51.0 | 19.80 |
| 5.000 | 159.4 | 165 | 128.6 | 152.40 | 51.0 | 19.80 |
| 5.125 | 165.6 | 168 | 131.7 | 155.58 | 51.0 | 19.80 |
| 5.250 | 165.8 | 172 | 134.9 | 158.75 | 51.0 | 19.80 |
| 5.375 | 168.9 | 175 | 138.1 | 161.93 | 51.0 | 19.80 |
| 5.500 | 172.1 | 178 | 141.3 | 165.10 | 51.0 | 19.80 |
| 5.625 | 175.3 | 181 | - | - | 51.0 | - |
| 5.750 | 178.5 | 184 | - | - | 51.0 | - |
| 5.875 | 181.6 | 187 | - | - | 51.0 | - |
| 6.000 | 184.8 | 191 | - | - | 51.0 | - |
